Your attic needs to breathe. Without proper airflow, heat and moisture build up inside the attic space, and that causes real damage: rotting roof decking, mold growth, ice dams in winter, and sky-high cooling bills in summer. The good news is that attic ventilation follows a clear set of rules. Once you understand the ratios, the vent types, and the code minimums, you can evaluate your own roof and fix problems before they become expensive repairs.
Key Takeaways
- The 1:150 ratio is the standard baseline — for every 150 square feet of attic floor space, you need 1 square foot of net free ventilation area.
- You can drop to 1:300 with balanced intake and exhaust — this applies when at least 50% of ventilation is placed at the eaves and the rest at or near the ridge.
- Soffit vents handle intake; ridge vents handle exhaust — pairing them creates a natural convective airflow loop that works without any electricity.
- Mixing exhaust vent types creates short-circuiting — never install both a ridge vent and a powered attic fan on the same roof section.
- Warning signs of poor ventilation include moisture stains, frost on sheathing, and premature shingle aging — all are visible during a basic attic inspection.
- IRC Section R806 governs attic ventilation in most U.S. jurisdictions — local codes may add stricter requirements on top of the federal baseline.
What Are the Minimum Attic Ventilation Requirements?
Quick Answer: The minimum requirement is 1 square foot of net free ventilation area per 150 square feet of attic floor space. This drops to 1 square foot per 300 square feet when intake and exhaust vents are balanced between the eaves and the ridge.
The International Residential Code (IRC), Section R806, sets the national baseline for attic ventilation in the United States. Most state and local building codes adopt these minimums directly, though some jurisdictions layer on stricter rules. Always check with your local building department before making changes.
The two ratios you need to know are 1:150 and 1:300. The 1:150 ratio applies when ventilation is unbalanced or placed in a single location. The 1:300 ratio applies when:
- At least 40-50% of required ventilation area is at the eave or cornice level (intake)
- The remaining ventilation is at the ridge or upper portion of the roof (exhaust)
- A vapor retarder (a material that slows moisture movement) is installed on the warm-in-winter side of the ceiling
A balanced system is almost always better. It creates a natural convective loop: cool outside air enters at the soffit, rises as it warms, and exits at the ridge. This loop works around the clock without any moving parts or electricity.

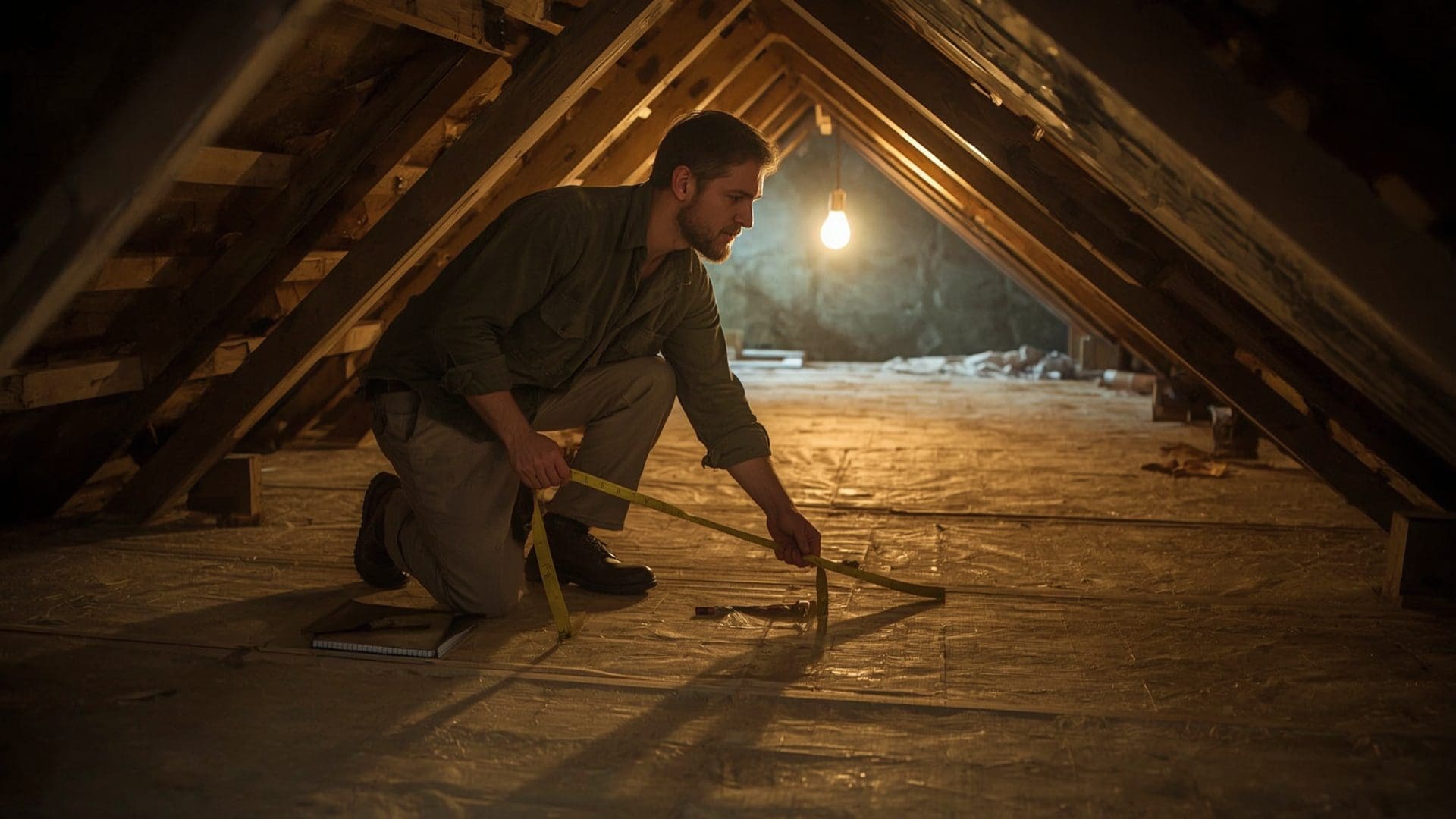

How to Calculate Your Attic’s Required Ventilation Area
The math is straightforward. Measure your attic floor area in square feet. Divide by 150 (or 300 if you’re using a balanced system). The result is the minimum net free area (NFA) in square feet that your ventilation must provide.
Example: A 1,500 square foot attic using the 1:300 ratio needs 5 square feet of NFA total. Split that evenly between intake and exhaust: 2.5 square feet at the soffits, 2.5 square feet at the ridge.
NFA is not the same as the physical size of a vent. Every vent has a rated NFA printed on the label. A soffit vent that is 16 inches by 8 inches may only have an NFA of 50-55 square inches. Always use rated NFA values, not the vent’s outer dimensions, when doing your calculation.
What Is Net Free Area and Why Does It Matter?
Quick Answer: Net free area (NFA) is the actual open space air can pass through in a vent, after accounting for screens and louvers. A vent’s physical size is always larger than its NFA. Using the wrong number leads to under-ventilated attics.
Every vent product has an NFA rating, usually expressed in square inches. When you are calculating your ventilation requirements, you must use NFA, not the overall vent dimensions. A 16×8-inch rectangular soffit vent, for example, typically delivers 50 to 55 square inches of NFA, not the 128 square inches of its physical size.
Screens reduce airflow. A standard insect screen cuts NFA by about 25%. Hardware cloth (a coarser wire mesh) cuts it by 50%. When evaluating or installing vents, check whether the NFA rating already accounts for the screen, or whether you need to reduce your calculation.

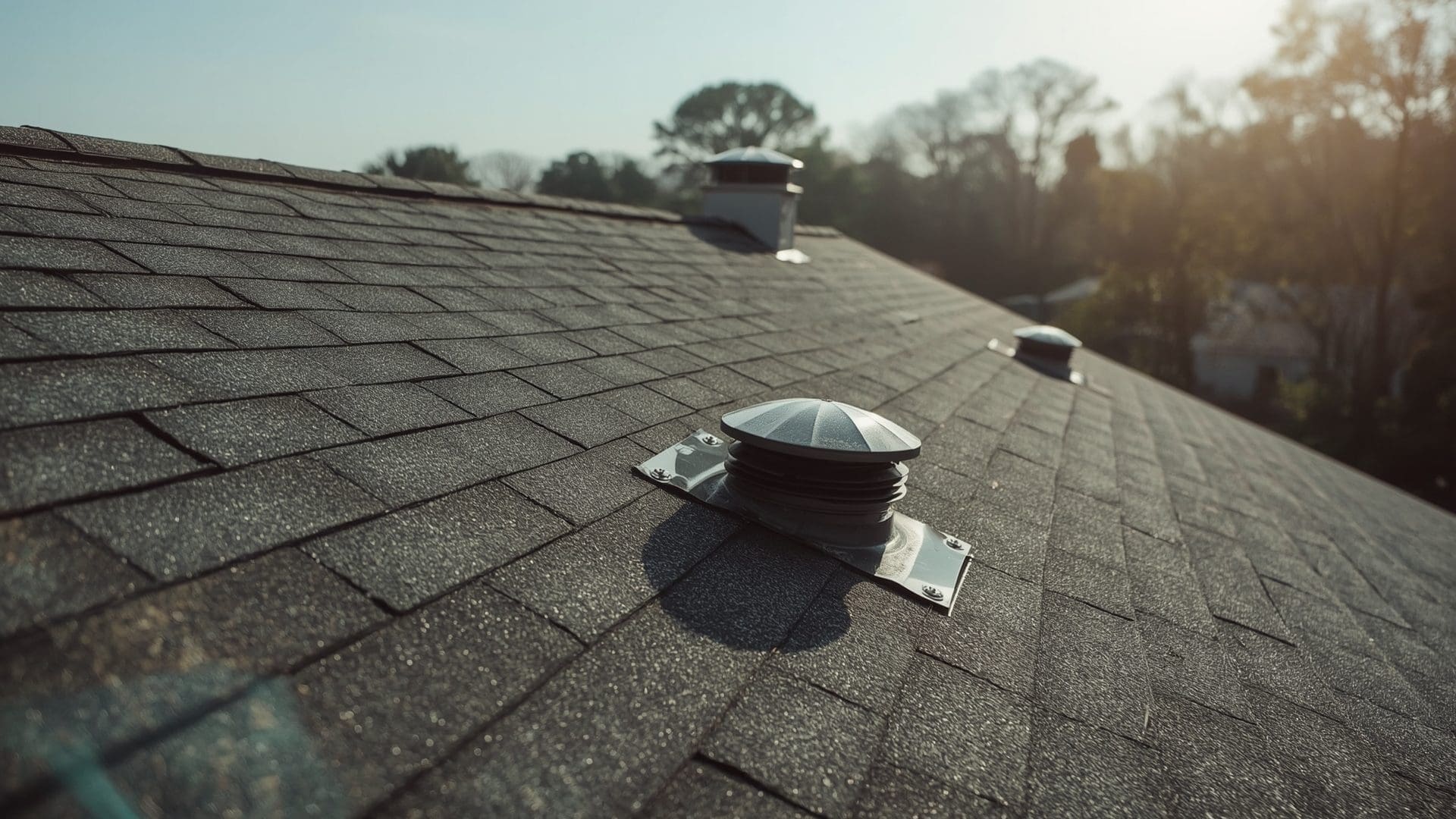

What Types of Attic Vents Are There and How Do They Work?
Quick Answer: The main vent types are ridge vents, soffit vents, gable vents, static box vents, turbine vents, and powered attic fans. Each serves a different role. Ridge and soffit vents together form the most efficient passive system for most homes.
Ridge Vents
A ridge vent runs along the peak of the roof. It allows hot, moist air to escape from the highest point in the attic. Because hot air naturally rises, the ridge is the ideal exhaust location. Most ridge vents are covered with a strip of shingles, making them nearly invisible from the street.
Ridge vents work best when paired with continuous soffit vents. Without adequate intake at the bottom, a ridge vent cannot pull air through the attic effectively. Think of it like a straw: you need both ends open for airflow to happen.
Soffit Vents
Soffit vents are installed in the underside of the roof overhang. They are the intake side of the ventilation system. Outside air enters here, travels up through the attic, and exits at the ridge. Soffit vents come in two main styles: continuous strips and individual circular or rectangular vents.
Continuous soffit vents deliver higher NFA per linear foot and distribute intake air more evenly. Individual vents are easier to install in retrofit situations. Both require clear pathways into the attic space. Soffit baffles, which are channel-shaped inserts placed between rafters, keep insulation from blocking the airflow path at the eave.
Gable Vents
Gable vents are installed in the triangular wall sections (gable ends) at each end of the roof. They provide cross-ventilation when wind pushes air through one side and out the other. On windy days, gable vents can work well. On calm days, they provide little benefit.
Gable vents are not ideal as the sole ventilation strategy. They also create a conflict when used alongside a ridge vent. In some wind conditions, a gable vent can short-circuit a ridge vent by pulling air from the attic instead of from the soffits. This creates dead zones in the middle of the attic where air does not circulate.
Static Box Vents (Roof Louvers)
Static box vents are small, fixed exhaust vents cut into the roof deck. They have no moving parts. They rely entirely on wind and thermal buoyancy to move air. A single static vent provides limited NFA, so multiple units are usually required to meet minimum ventilation ratios. They are commonly used on hip roofs where installing a continuous ridge vent is difficult.
Turbine Vents (Whirlybirds)
Turbine vents spin when wind blows across them, using rotation to pull air out of the attic. They are more effective than static box vents in windy climates. In calm weather, they function like static vents. A turbine vent typically provides an NFA of 50 to 150 square inches depending on diameter and wind speed.
Powered Attic Fans
Powered attic fans use an electric motor to force air out of the attic. They are effective at moving large volumes of air quickly. However, they come with a significant risk: if the attic is not properly sealed from the living space below, a powerful fan can depressurize the attic and pull conditioned air up from inside the house, increasing your energy bills.
Powered fans should never be installed on the same roof section as a ridge vent. The fan will short-circuit the ridge vent by pulling outside air in through it rather than through the soffit vents.
How Do Ridge Vents and Soffit Vents Work Together?
Quick Answer: Soffit vents bring cool air in at the eaves. That air heats up inside the attic and rises toward the peak, where it exits through the ridge vent. This creates a continuous passive loop that removes heat and moisture without motors or electricity.
This pairing is called a balanced intake-exhaust system. It is the most reliable, lowest-maintenance ventilation strategy for standard gabled roofs. When properly sized, the system runs continuously driven entirely by physics: hot air is less dense and rises, and cooler outside air fills in at the bottom.
For this loop to work, the intake and exhaust NFA must be roughly equal. If you have much more exhaust than intake, the system will try to pull air from wherever it can, including cracks in the attic floor. If intake far exceeds exhaust, heat and moisture will pool near the ridge.
Attic Vent Types: NFA Ratings, Costs, and Best Applications
Quick Answer: Ridge vents deliver the highest NFA per linear foot and suit most gabled roofs. Soffit vents are the best intake option. Static vents work on hip roofs. Gable vents suit older homes with no other options. Turbines help in windy regions.
| Vent Type | Role | Typical NFA | Cost (Installed) | Best Application | Key Limitation |
|---|---|---|---|---|---|
| Ridge Vent (continuous) | Exhaust | 17-18 sq in per linear foot | $3-$5 per linear foot | Gabled roofs, standard pitch | Requires adequate soffit intake |
| Continuous Soffit Vent | Intake | 9-11 sq in per linear foot | $2-$4 per linear foot | Any roof with full eave overhang | Needs baffles to prevent insulation blockage |
| Individual Soffit Vent | Intake | 50-55 sq in per vent | $5-$15 per vent | Retrofit installations | Less even air distribution |
| Gable Vent | Intake/Exhaust | 200-600 sq in per vent | $30-$150 per vent | Older homes, supplemental use | Short-circuits ridge vents |
| Static Box Vent | Exhaust | 50-75 sq in per vent | $30-$80 per vent | Hip roofs, complex roof lines | Multiple units required |
| Turbine Vent (12 in) | Exhaust | 50-150 sq in (wind-dependent) | $50-$150 per vent | Windy climates, hip roofs | Ineffective in calm weather |
| Powered Attic Fan | Exhaust | 800-1,500 CFM per unit | $300-$600 per unit | Sealed attics, supplemental cooling | Can depressurize living space |
What Are the Signs of Poor Attic Ventilation?
Quick Answer: Common signs include moisture stains on rafters, frost on the underside of roof sheathing in winter, mold growth, shingles that age faster than expected, and a noticeably hot second floor. Any of these signals a ventilation problem worth investigating.

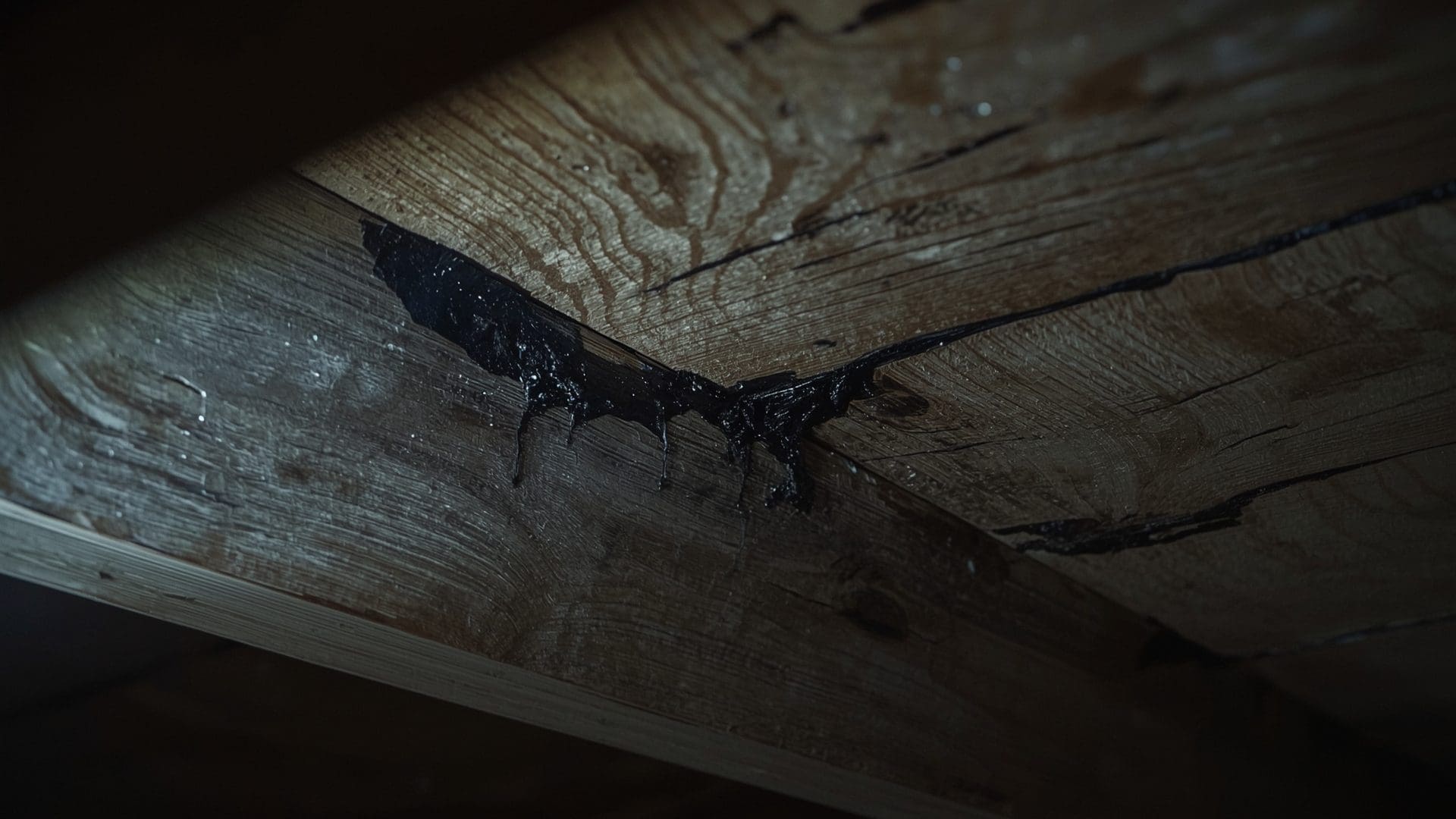

Moisture Damage and Mold
Warm air from the living space carries moisture. When that air enters an under-ventilated attic, it condenses on cold surfaces like the underside of the roof deck (also called roof sheathing). Over time, this moisture causes wood rot, black staining, and mold. You will often see dark streaks on rafters or a musty smell when you open the attic hatch.
In winter climates, moisture can freeze on the underside of the sheathing and appear as frost. When temperatures rise, this frost melts and drips onto insulation, reducing its effectiveness and creating wet spots that promote mold growth.
Ice Dams
Ice dams form along the eaves when the upper portion of the roof is warm enough to melt snow, but the lower eave section is cold. The meltwater runs down and refreezes at the colder eave. A properly ventilated attic keeps the entire underside of the roof close to outdoor temperatures, which prevents the uneven warming that causes ice dams.
Premature Shingle Deterioration
Heat trapped in an under-ventilated attic can reach 150°F or higher on hot summer days. Extreme heat accelerates the breakdown of asphalt shingles from the underside. This reduces shingle lifespan by five to ten years in severe cases. If your shingles are granulating (losing their surface texture) faster than expected, heat buildup may be the cause.
High Cooling Costs
A superheated attic radiates heat downward into your living space. Your air conditioning system has to work harder to compensate. Homeowners with poorly ventilated attics often report cooling bills 10-15% higher than homes with equivalent insulation but proper airflow.
Signs of Poor Attic Ventilation: A Quick-Reference Table
| Sign | When It Appears | Root Cause | Risk Level |
|---|---|---|---|
| Frost on roof sheathing | Winter | Moisture condensation from warm interior air | High (structural damage) |
| Mold on rafters | Year-round | Chronic moisture buildup | High (health + structural) |
| Ice dams at eaves | Winter | Uneven roof temperature, heat escaping from attic | High (water intrusion) |
| Premature shingle granule loss | Summer (accelerated) | Attic heat exceeding 140°F | Medium (shortened roof life) |
| Dark staining on wood decking | Year-round | Repeated moisture cycles | High (wood rot risk) |
| Hot second floor rooms | Summer | Radiant heat from superheated attic | Low-Medium (comfort, energy cost) |
How Does Attic Ventilation Interact With Insulation?
Quick Answer: Insulation and ventilation serve different roles. Insulation slows heat transfer between the attic and living space. Ventilation removes heat and moisture from the attic itself. You need both. Insulation without ventilation traps moisture. Ventilation without insulation wastes energy.
The most common insulation problem in attics is blocking soffit vents. When insulation is blown or laid in batts all the way to the eave, it covers the soffit vent opening and stops intake air from entering. This kills the balanced airflow system even if the ridge vent is perfectly installed.

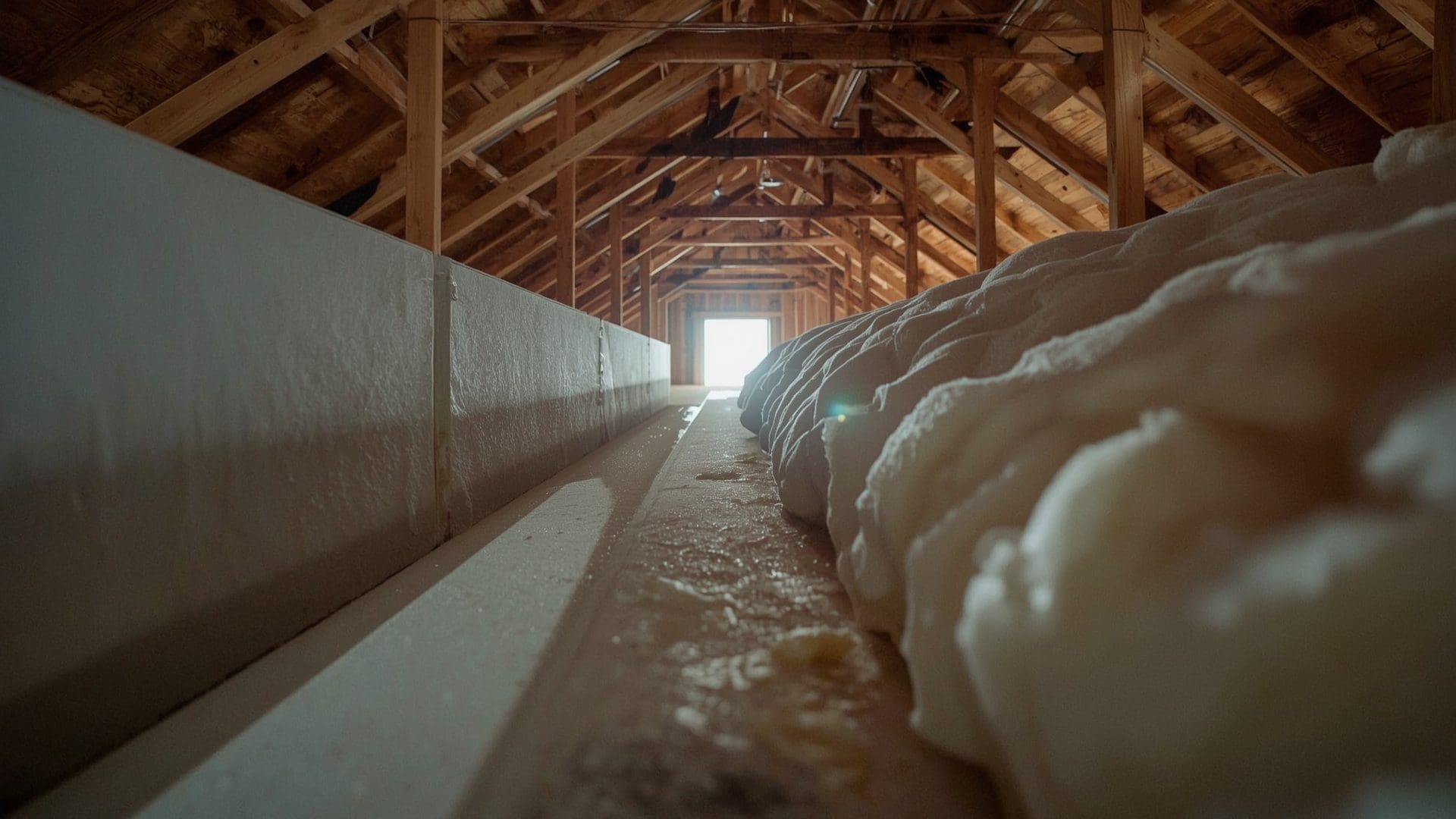

Soffit baffles solve this problem. A soffit baffle is a rigid channel made of cardboard, foam, or plastic that gets stapled between rafters at the eave. It holds the insulation back and keeps a clear air pathway from the soffit vent into the attic. Every rafter bay that sits above a soffit vent should have a baffle installed.
Ventilation Requirements by Insulation Type
| Insulation Type | R-Value Per Inch | Ventilation Impact | Baffle Required | Notes |
|---|---|---|---|---|
| Blown-in fiberglass | R-2.2 to R-2.7 | High risk of blocking soffits | Yes | Easily displaced toward eaves |
| Blown-in cellulose | R-3.2 to R-3.8 | High risk of blocking soffits | Yes | Settles over time; recheck clearance |
| Fiberglass batts | R-2.9 to R-3.8 | Moderate risk if pushed to eave | Yes | Easier to position away from soffits |
| Spray foam (open cell) | R-3.5 to R-3.8 | Used in unvented (conditioned) attics | No | Different code path; requires full seal |
| Spray foam (closed cell) | R-6.0 to R-7.0 | Used in unvented (conditioned) attics | No | Highest cost; meets IRC R806.5 for unvented assemblies |
What Is an Unvented Attic Assembly and When Does It Apply?
Quick Answer: An unvented attic assembly uses spray foam insulation applied directly to the underside of the roof deck, turning the attic into conditioned space. No ventilation vents are needed. IRC R806.5 governs this approach and sets minimum insulation R-values by climate zone.
Most attics follow the vented approach described throughout this article. But unvented assemblies have grown in popularity for homes with complex rooflines, HVAC equipment located in the attic, or high-humidity climates where moisture control is critical.
In an unvented assembly, closed-cell or open-cell spray foam is applied directly to the underside of the roof sheathing. This keeps the roof deck warm and above the dew point (the temperature at which moisture condenses), eliminating condensation risk without any airflow. The attic becomes part of the conditioned building envelope.
This approach requires strict compliance with IRC R806.5, which specifies minimum R-values for the spray foam layer depending on your climate zone. The requirements range from R-5 in Climate Zone 1 to R-25 in Climate Zone 7 and 8. If you are considering this option, hire a building performance contractor who can verify code compliance for your specific location.
How Do You Inspect Your Attic for Ventilation Problems?
Quick Answer: Check for blocked soffit vents, missing baffles, dark staining on wood, signs of moisture or mold, and whether exhaust and intake vents are both present. Bring a flashlight and inspect in winter to catch frost and in summer to feel heat buildup.
Step-by-Step Attic Ventilation Inspection
- Check soffit vents from below. Walk the perimeter of your home and look for vent openings in the soffit. Paint, debris, and insulation commonly block them.
- Look for baffles at the eaves. Open the attic hatch and shine a flashlight toward the eaves. You should see clear channel baffles between rafters. If you see insulation pushed all the way to the edge, airflow is blocked.
- Look for moisture staining. Examine the underside of the roof sheathing and the top of the rafters. Dark staining, soft spots, or discoloration indicate chronic moisture exposure.
- Check for mold. Dark fuzzy patches on wood surfaces, especially near the ridge, indicate mold. This requires remediation, not just improved ventilation.
- Identify your exhaust vents. Confirm you have at least one type of exhaust vent at or near the ridge. If you only have gable vents, your attic may be under-ventilated at the center.
- Feel the temperature. On a hot summer afternoon, a properly ventilated attic will still be warm, but not brutally hot. Temperatures above 130°F (measured with a simple thermometer) suggest inadequate exhaust.
- Recalculate your NFA. Count your vents, look up their NFA ratings, and compare the total to your required NFA based on the 1:150 or 1:300 formula.
What Common Attic Ventilation Mistakes Should You Avoid?
Quick Answer: The most common mistakes are mixing exhaust vent types on the same roof, blocking soffit vents with insulation, installing powered fans alongside ridge vents, and under-sizing the system based on physical vent dimensions instead of NFA ratings.
Mixing Exhaust Vent Types
Never install two different types of exhaust vents on the same roof section. For example, if you add a powered attic fan to a roof that already has a ridge vent, the fan will pull air in through the ridge vent instead of pushing it out. This short-circuits the system and can draw humid outdoor air into the attic space.
Using Physical Dimensions Instead of NFA
A vent that is 12 inches wide and 4 inches tall does not provide 48 square inches of ventilation. It provides whatever NFA is stamped on the product. Always read the label. This single mistake is the most common reason homeowners think their attic is adequately ventilated when it is not.
Ignoring Intake When Adding Exhaust
Adding more ridge vent or exhaust vents without enough soffit intake does not increase ventilation. It just creates negative pressure in the attic. The system needs balanced airflow. For every square inch of exhaust you add, you should be adding a comparable amount of intake.
Covering Vents With Insulation During Air Sealing
Air sealing the attic floor (which reduces energy loss) is a good practice. But workers sometimes push insulation or foam into the eave area while sealing, covering soffit vents in the process. Always verify vent clearances after any insulation or air sealing work is done.
Frequently Asked Questions
Does every attic need ventilation?
Most attics do, yes. Vented attics are the standard approach under the International Residential Code. The exception is an unvented conditioned attic assembly, which uses spray foam insulation to eliminate the need for airflow. That approach requires strict code compliance and professional installation.
Can I install attic vents myself?
Soffit vents and some static box vents are within reach of a confident DIYer. Ridge vents involve cutting along the ridge cap and require roofing experience to install without creating a leak. Powered attic fans also need electrical connections. For anything involving the roof deck, hiring a licensed contractor reduces risk significantly.
How many ridge vents do I need?
A continuous ridge vent provides about 17 to 18 square inches of NFA per linear foot. Divide your required exhaust NFA by 17.5 to find the minimum number of linear feet you need. For a 1,500 square foot attic using the 1:300 ratio, you need about 2.5 square feet (360 square inches) of exhaust NFA, which requires roughly 21 linear feet of ridge vent.
Do solar-powered attic fans count toward ventilation requirements?
Solar-powered attic fans work the same way as electric powered fans in terms of airflow. They reduce energy costs but carry the same risks around short-circuiting ridge vents and depressurizing the attic. Most building codes do not allow powered fans to substitute for passive balanced ventilation systems.
What is the difference between an intake vent and an exhaust vent?
An intake vent brings fresh outside air into the attic, usually at the soffit or eave. An exhaust vent lets hot, moist air out, usually at or near the ridge. Both are required. A system with only exhaust vents or only intake vents cannot create proper airflow through the attic space.
How does attic ventilation affect roof warranty?
Many asphalt shingle manufacturers require proof of adequate attic ventilation to honor warranty claims. If your attic does not meet the 1:150 or 1:300 ratio, the manufacturer can deny claims for premature shingle failure. Always verify ventilation requirements before installing a new roof and document your vent NFA calculations.
